C# 把图片显示成椭圆形状 例子源码下载

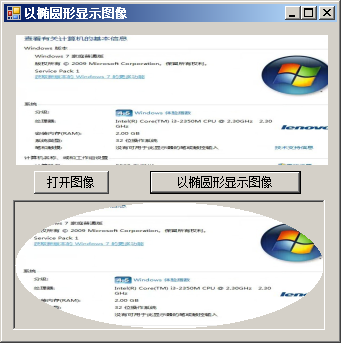

实例如图所示



using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;

namespace ShowImageByEllipse
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private Bitmap SourceBitmap;
        private Bitmap MyBitmap;
        private void button2_Click(object sender, EventArgs e)
        {
            //打开图像文件
            OpenFileDialog openFileDialog = new OpenFileDialog();
            openFileDialog.Filter = "图像文件(JPeg, Gif, Bmp, etc.)|*.jpg;*.jpeg;*.gif;*.bmp;*.tif; *.tiff; *.png| JPeg 图像文件(*.jpg;*.jpeg)|*.jpg;*.jpeg |GIF 图像文件(*.gif)|*.gif |BMP图像文件(*.bmp)|*.bmp|Tiff图像文件(*.tif;*.tiff)|*.tif;*.tiff|Png图像文件(*.png)| *.png |所有文件(*.*)|*.*";
            if (openFileDialog.ShowDialog() == DialogResult.OK)
            {
                //得到原始大小的图像
                SourceBitmap = new Bitmap(openFileDialog.FileName);
                //得到缩放后的图像
                MyBitmap = new Bitmap(SourceBitmap, this.pictureBox1.Width, this.pictureBox1.Height);
                this.pictureBox1.Image = MyBitmap;
            }
        }

        private void button1_Click(object sender, EventArgs e)
        {
            this.panel1.Refresh();//刷新Panel控件
            Graphics g = this.panel1.CreateGraphics();//实例化绘图对象
            TextureBrush MyBrush = new TextureBrush(MyBitmap);//实例化TextureBrush对象
            g.FillEllipse(MyBrush, this.panel1.ClientRectangle);//绘制椭圆图像
        }
    }
}

资源下载

此资源下载价格为2D币（VIP免费），请先登录

资源文件列表

ShowImageByEllipse.sln , 944
ShowImageByEllipse.suo , 27136
ShowImageByEllipse/bin/Debug/ShowImageByEllipse.exe , 10240
ShowImageByEllipse/bin/Debug/ShowImageByEllipse.pdb , 24064
ShowImageByEllipse/Form1.cs , 1741
ShowImageByEllipse/Form1.designer.cs , 4382
ShowImageByEllipse/Form1.resx , 5814
ShowImageByEllipse/obj/Debug/DesignTimeResolveAssemblyReferencesInput.cache , 7200
ShowImageByEllipse/obj/Debug/ShowImageByEllipse.csproj.FileListAbsolute.txt , 4228
ShowImageByEllipse/obj/Debug/ShowImageByEllipse.csproj.GenerateResource.Cache , 847
ShowImageByEllipse/obj/Debug/ShowImageByEllipse.csprojResolveAssemblyReference.cache , 1757
ShowImageByEllipse/obj/Debug/ShowImageByEllipse.exe , 10240
ShowImageByEllipse/obj/Debug/ShowImageByEllipse.Form1.resources , 180
ShowImageByEllipse/obj/Debug/ShowImageByEllipse.pdb , 24064
ShowImageByEllipse/obj/Debug/ShowImageByEllipse.Properties.Resources.resources , 180
ShowImageByEllipse/obj/Debug/TempPE/Properties.Resources.Designer.cs.dll , 4608
ShowImageByEllipse/Program.cs , 499
ShowImageByEllipse/Properties/AssemblyInfo.cs , 1368
ShowImageByEllipse/Properties/Resources.Designer.cs , 2876
ShowImageByEllipse/Properties/Resources.resx , 5612
ShowImageByEllipse/Properties/Settings.Designer.cs , 1118
ShowImageByEllipse/Properties/Settings.settings , 249
ShowImageByEllipse/ShowImageByEllipse.csproj , 4025
