android客户端利用sokcet通信和向Java服务端发请求，Java服务端把文件发给android客户端
调试时需要将 android端 连接的 ip地址 改为您服务器的ip地址 即可

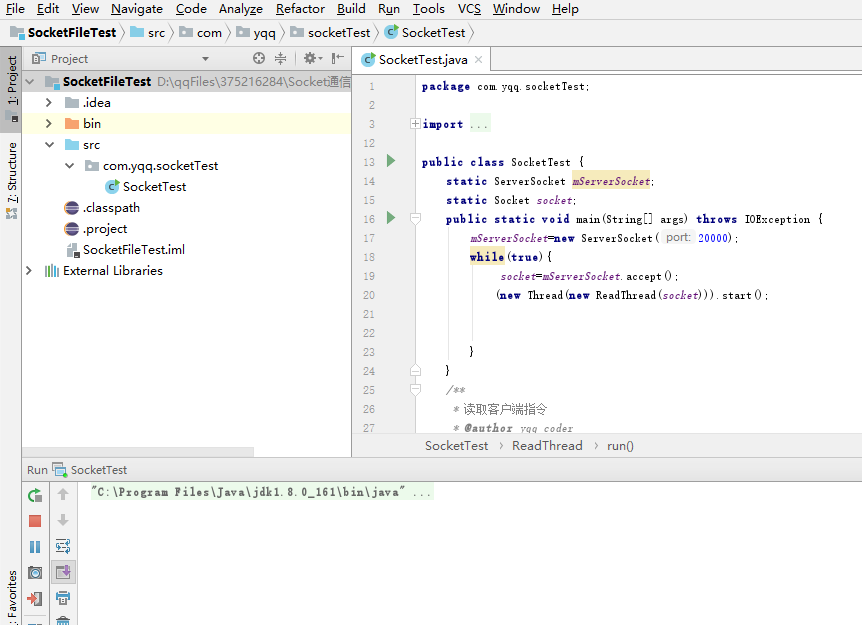

服务端截图:

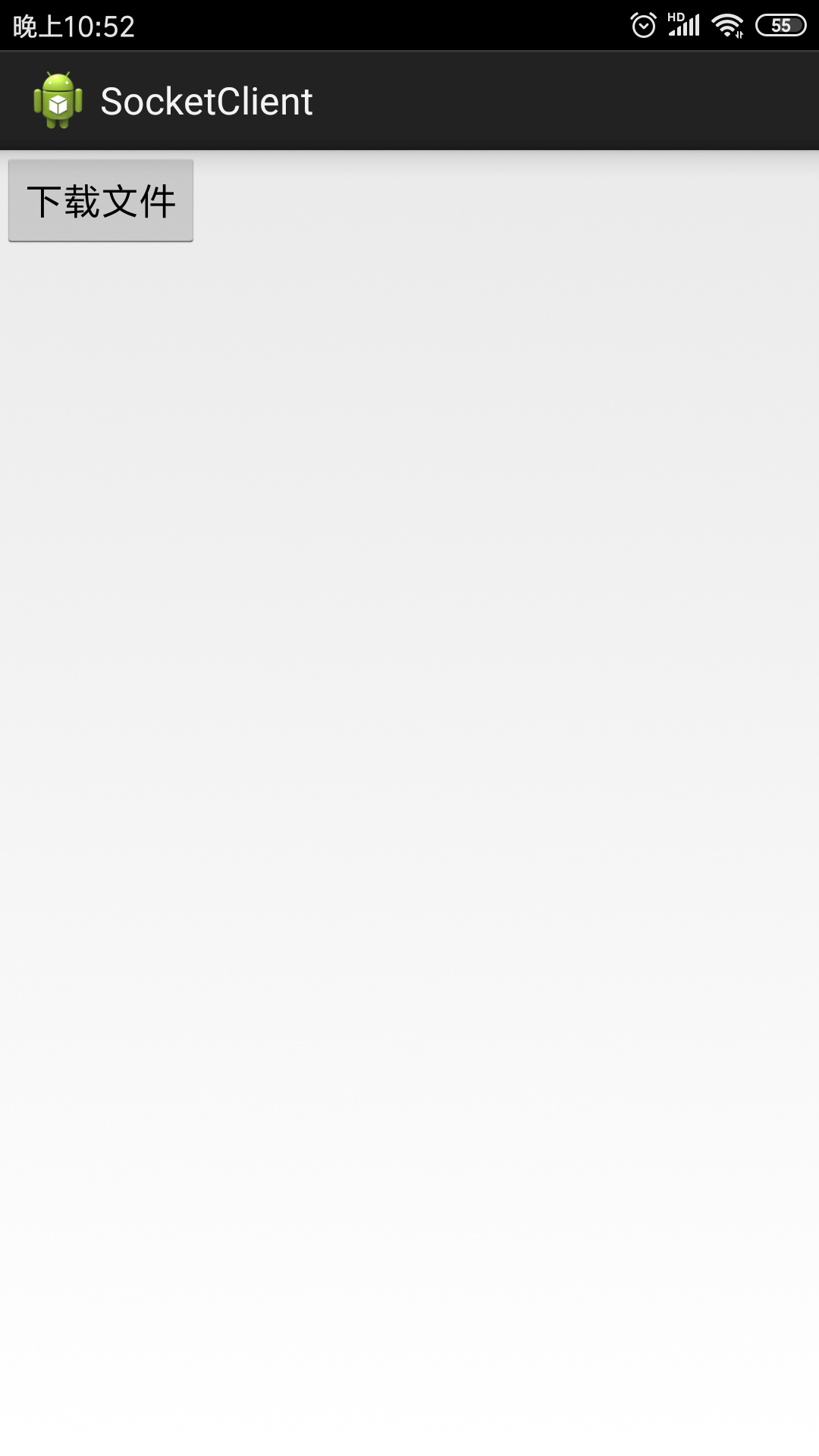

android端截图
android端源码如下：
package com.yqq.SocketClient;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.InetAddress;
import java.net.Socket;
import java.net.UnknownHostException;
import android.app.Activity;
import android.os.Bundle;
import android.os.Environment;
import android.os.Handler;
import android.os.Looper;
import android.os.Message;
import android.view.View;
import android.widget.Toast;
public class SocketClient extends Activity {
private Socket socket;
InputStream inputStream;
OutputStream outputStream;
Handler mHandler=new Handler(){
public void handleMessage(Message msg) {
if(msg.what==0x123){
Toast.makeText(SocketClient.this,"文件下载完毕", 0).show();
}
}
};
@Override
protected void onCreate(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onCreate(savedInstanceState);
setContentView(com.example.socketclient.R.layout.main);
}
public void downFile(View v){
new Thread(new Runnable() {
@Override
public void run() {
try {
socket=new Socket(InetAddress.getByName("172.20.113.1"), 20000);
inputStream=socket.getInputStream();
outputStream=socket.getOutputStream();
outputStream.write("askForFile".getBytes());
outputStream.flush();
//socket.shutdownOutput();
Thread.sleep(3000);
byte[] buffer=new byte[1024];
File file=new File(getCacheDir(),"测试");
FileOutputStream fileOutputStream=new FileOutputStream(file);
while(inputStream.read(buffer)!=-1){
fileOutputStream.write(buffer);
}
Looper.prepare();
Message message=Message.obtain();
message.what=0x123;
mHandler.sendMessage(message);
Looper.loop();
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}).start();
}
}
