package com.cblue.baidumap;
import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import baidumapsdk.demo.R;
import com.baidu.mapapi.map.BaiduMap;
import com.baidu.mapapi.map.BitmapDescriptor;
import com.baidu.mapapi.map.BitmapDescriptorFactory;
import com.baidu.mapapi.map.MapView;
import com.baidu.mapapi.model.LatLng;
import com.baidu.mapapi.overlayutil.DrivingRouteOverlay;
import com.baidu.mapapi.overlayutil.OverlayManager;
import com.baidu.mapapi.search.core.RouteLine;
import com.baidu.mapapi.search.core.SearchResult;
import com.baidu.mapapi.search.route.DrivingRouteLine;
import com.baidu.mapapi.search.route.DrivingRoutePlanOption;
import com.baidu.mapapi.search.route.DrivingRouteResult;
import com.baidu.mapapi.search.route.OnGetRoutePlanResultListener;
import com.baidu.mapapi.search.route.PlanNode;
import com.baidu.mapapi.search.route.RoutePlanSearch;
import com.baidu.mapapi.search.route.TransitRouteResult;
import com.baidu.mapapi.search.route.WalkingRouteResult;
/**

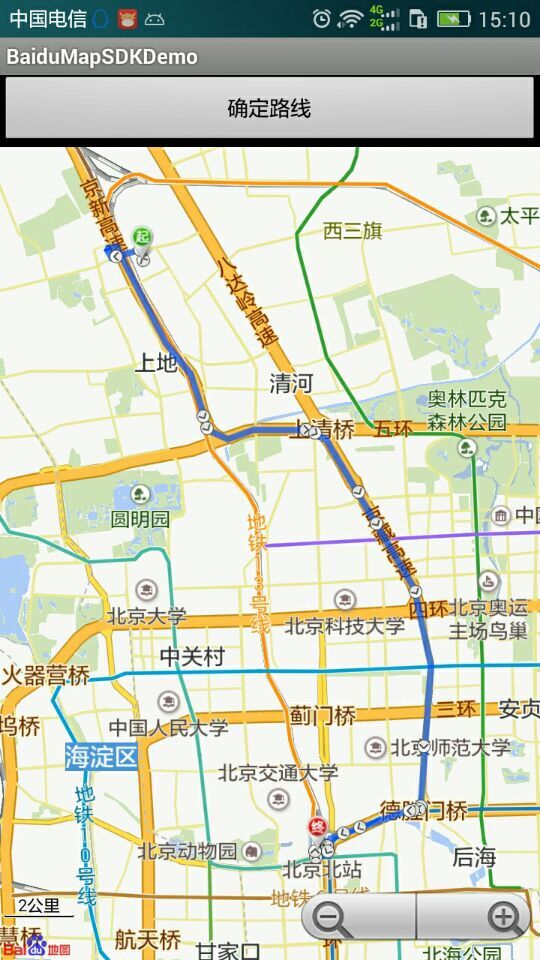

* 路线实现
* 得到路线搜索对象，并设置路线监听搜索
* 得到开始点，结束点，进行汽车路线搜索，在搜索结果中定义开始点和结束点的图片，并显示
* 得到路线的节点信息，并以此打印节点
* @author pavel
*
*/
public class RoutePlanDemo_My extends Activity implements
OnGetRoutePlanResultListener {
private MapView mapView;
private BaiduMap baiduMap;
private String city = "北京";
private String startPlace ="龙泽";
private String endPlace = "西单";
private RoutePlanSearch routePlanSearch; /* 线路平面图搜索 */
private RouteLine routeLine; /* 线路 */
private Button btn;
private OverlayManager overlayManager;
@Override
protected void onCreate(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onCreate(savedInstanceState);
setContentView(R.layout.my_map);
mapView = (MapView) findViewById(R.id.myMapView);
btn = (Button)findViewById(R.id.myMapBtn);
baiduMap = mapView.getMap();
Log.i("aaa", "RoutePlanDemo_My");
// 初始化搜索模块
routePlanSearch = RoutePlanSearch.newInstance();
routePlanSearch.setOnGetRoutePlanResultListener(this);
btn.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
// TODO Auto-generated method stub
// 起终点的信息
PlanNode stratNode = PlanNode.withCityNameAndPlaceName(city,"西二旗");
PlanNode endNode = PlanNode.withCityNameAndPlaceName(city,"西直门");
Log.i("aaa","--" stratNode.toString());
// 起终点 开车信息
routePlanSearch.drivingSearch(new DrivingRoutePlanOption().from(
stratNode).to(endNode));
}
});
}
@Override
public void onGetDrivingRouteResult(DrivingRouteResult result) {
// TODO Auto-generated method stub
Log.i("aaa", "result=" result);
Log.i("aaa", result.error "====" SearchResult.ERRORNO.NO_ERROR);
if (result == null || result.error != SearchResult.ERRORNO.NO_ERROR) {
Log.i("aaa", "驾车未找到结果");
} else if (result.error == SearchResult.ERRORNO.NO_ERROR) {
Log.i("aaa", "驾车信息找到结果");
routeLine = result.getRouteLines().get(0);
MyDriverRouteOverlay myDriverRouteOverlay = new MyDriverRouteOverlay(
baiduMap);
baiduMap.setOnMarkerClickListener(myDriverRouteOverlay);
myDriverRouteOverlay.setData(result.getRouteLines().get(0)); // 设置线路
myDriverRouteOverlay.addToMap(); // 添加到地图上
myDriverRouteOverlay.zoomToSpan(); /* 缩放地图 */
getNodeInfo(routeLine);
}
}
// 获取节点信息
private void getNodeInfo(RouteLine routeLine) {
// TODO Auto-generated method stub
for (int i = 0; i < routeLine.getAllStep().size() - 1; i ) {
Object step = routeLine.getAllStep().get(i);
if (step instanceof DrivingRouteLine.DrivingStep) {
LatLng nodeLocation = ((DrivingRouteLine.DrivingStep) step)
.getEntrance().getLocation();
String nodeTitle = ((DrivingRouteLine.DrivingStep) step)
.getInstructions();
Log.i("aaa", "nodetitle=" nodeTitle " 经纬度"
nodeLocation.latitude "===="
nodeLocation.longitude);
}
}
}
@Override
public void onGetTransitRouteResult(TransitRouteResult arg0) {
// TODO Auto-generated method stub
}
@Override
public void onGetWalkingRouteResult(WalkingRouteResult arg0) {
// TODO Auto-generated method stub
}
public class MyDriverRouteOverlay extends DrivingRouteOverlay {
public MyDriverRouteOverlay(BaiduMap arg0) {
super(arg0);
// TODO Auto-generated constructor stub
}
@Override
public BitmapDescriptor getStartMarker() {
// TODO Auto-generated method stub
return BitmapDescriptorFactory.fromResource(R.drawable.icon_st);
}
@Override
public BitmapDescriptor getTerminalMarker() {// 末端
// TODO Auto-generated method stub
return BitmapDescriptorFactory.fromResource(R.drawable.icon_en);
}
}
}
