ModbusRtuConnect例子
package com.modbusconnect;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.ToggleButton;
import com.modbusconnect.rtuwrapper.connection.ModbusRtuConnection;
import com.modbusconnect.rtuwrapper.io.ModbusRtuTransaction;
import com.modbusconnect.rtuwrapper.messaging.ModbusException;
import com.modbusconnect.rtuwrapper.messaging.ReadCoilRequest;
import com.modbusconnect.rtuwrapper.messaging.ReadCoilResponse;
import com.modbusconnect.rtuwrapper.messaging.ReadRegisterRequest;
import com.modbusconnect.rtuwrapper.messaging.ReadRegisterResponse;
import com.modbusconnect.rtuwrapper.messaging.WriteCoilRequest;
import com.modbusconnect.rtuwrapper.messaging.WriteCoilResponse;
import com.modbusconnect.rtuwrapper.messaging.WriteRegisterRequest;
import com.modbusconnect.rtuwrapper.messaging.WriteRegisterResponse;
import static com.modbusconnect.rtuwrapper.ModbusConstants.VENDOR_ID;

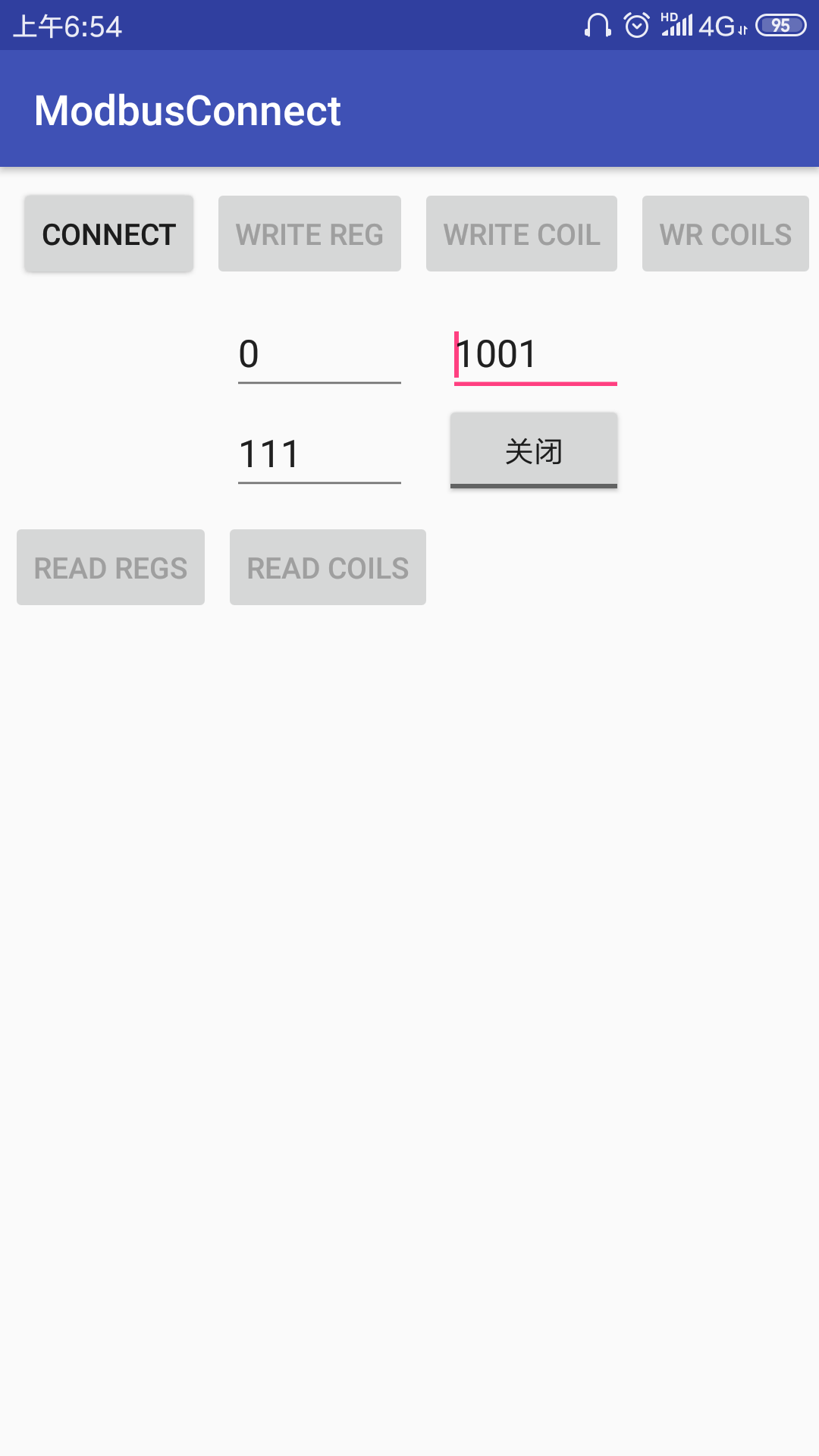

public class MainActivity extends AppCompatActivity {
TextView textView;
EditText etRegNum;
EditText etRegVal;
EditText editText;
ToggleButton toggleButton;
Button buttonWriteRegister;
Button buttonWriteCoil;
Button buttonSetAllCoils;
Button buttonReadRegs;
Button buttonReadCoils;
ModbusRtuConnection connection;
ModbusRtuTransaction transaction;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
textView = (TextView) findViewById(R.id.textView);
editText = (EditText) findViewById(R.id.editText);
toggleButton = (ToggleButton) findViewById(R.id.toggleButton);
etRegNum = (EditText) findViewById(R.id.etRegNum);
etRegVal = (EditText) findViewById(R.id.etRegVal);
System.out.println(etRegNum.getText().toString());
Button buttonConnect = (Button) findViewById(R.id.buttonConnect);
buttonConnect.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
connect();
}
});
buttonWriteRegister = (Button) findViewById(R.id.buttonWriteRegister);
buttonWriteRegister.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
int address = Integer.parseInt(etRegNum.getText().toString());
int value = Integer.parseInt(etRegVal.getText().toString());
WriteRegisterRequest request = new WriteRegisterRequest(address, value);
WriteRegisterResponse response;
try {
transaction.execute(request);
response = (WriteRegisterResponse) transaction.getResponse();
log("reg " address " = " response.getValue());
} catch (ModbusException e) {
e.printStackTrace();
}
}
});
buttonWriteCoil = (Button) findViewById(R.id.buttonWriteCoil);
buttonWriteCoil.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
int address = Integer.parseInt(editText.getText().toString());
boolean value = toggleButton.isChecked();
WriteCoilRequest request = new WriteCoilRequest(address, value);
WriteCoilResponse response;
try {
transaction.execute(request);
response = (WriteCoilResponse) transaction.getResponse();
log("coil " address " = " response.getValue());
} catch (ModbusException e) {
e.printStackTrace();
}
}
});
buttonSetAllCoils = (Button) findViewById(R.id.buttonWriteAllCoils);
buttonSetAllCoils.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
setAllCoilsOnOff();
}
});
buttonReadRegs = (Button) findViewById(R.id.buttonReadRegs);
buttonReadRegs.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
ReadRegisterRequest request = new ReadRegisterRequest();
ReadRegisterResponse response;
for (int i = 0; i < 7; i ) {
request.setData(i, 0);
try {
transaction.execute(request);
} catch (ModbusException e) {
e.printStackTrace();
}
try {
response = (ReadRegisterResponse) transaction.getResponse();
log("reg " i " = " response.getValue());
} catch (ModbusException e) {
e.printStackTrace();
}
}
}
});
buttonReadCoils = (Button) findViewById(R.id.buttonReadCoils);
buttonReadCoils.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
ReadCoilRequest request = new ReadCoilRequest();
ReadCoilResponse response;
for (int i = 1000; i < 1007; i ) {
request.setData(i, false);
try {
transaction.execute(request);
} catch (ModbusException e) {
e.printStackTrace();
}
try {
response = (ReadCoilResponse) transaction.getResponse();
log("coil " i " = " response.getValue());
} catch (ModbusException e) {
e.printStackTrace();
}
}
}
});
enableUi(false);
}
@Override
protected void onDestroy() {
if (connection != null) {
connection.disconnect();
}
super.onDestroy();
}
private void enableUi(boolean enable) {
buttonWriteRegister.setEnabled(enable);
buttonWriteCoil.setEnabled(enable);
buttonSetAllCoils.setEnabled(enable);
buttonReadRegs.setEnabled(enable);
buttonReadCoils.setEnabled(enable);
}
private void log(String text) {
textView.setText(textView.getText().toString() " // " text);
}
private void connect() {
connection = new ModbusRtuConnection(getApplicationContext(), VENDOR_ID, false);
connection.connect(new ModbusRtuConnection.OnConnectedToPlcListener() {
@Override
public void onConnected() {
if (connection.isConnected()) {
transaction = new ModbusRtuTransaction(connection);
}
log("Connected - " connection.isConnected());
enableUi(true);
}
});
}
//setCoilsOnOff vals
int current = 1000;
int startAddress = 1000;
int endAddress = 1006;
boolean isUp = true;
private void setAllCoilsOnOff() {
if (connection == null || !connection.isConnected()) return;
WriteCoilRequest request = new WriteCoilRequest();
if (current == endAddress) {
isUp = false;
} else if (current == startAddress) {
isUp = true;
}
try {
if (isUp) {
while (current < endAddress) {
request.setData(current, true);
transaction.execute(request);
current;
}
if (current == endAddress) {
request.setData(current, true);
transaction.execute(request);
}
} else {
while (current > startAddress) {
request.setData(current, false);
transaction.execute(request);
current--;
}
if (current == startAddress) {
request.setData(current, false);
transaction.execute(request);
}
}
} catch (ModbusException e) {
e.printStackTrace();
}
}
}

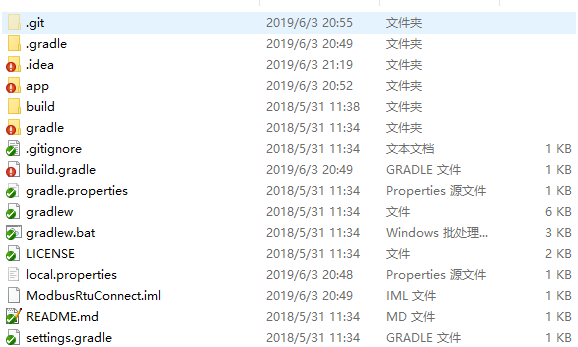

资源文件列表
